Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service.

UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 1
UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 2
UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 3
UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 4
UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 1
UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 2
UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 3
UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth 4

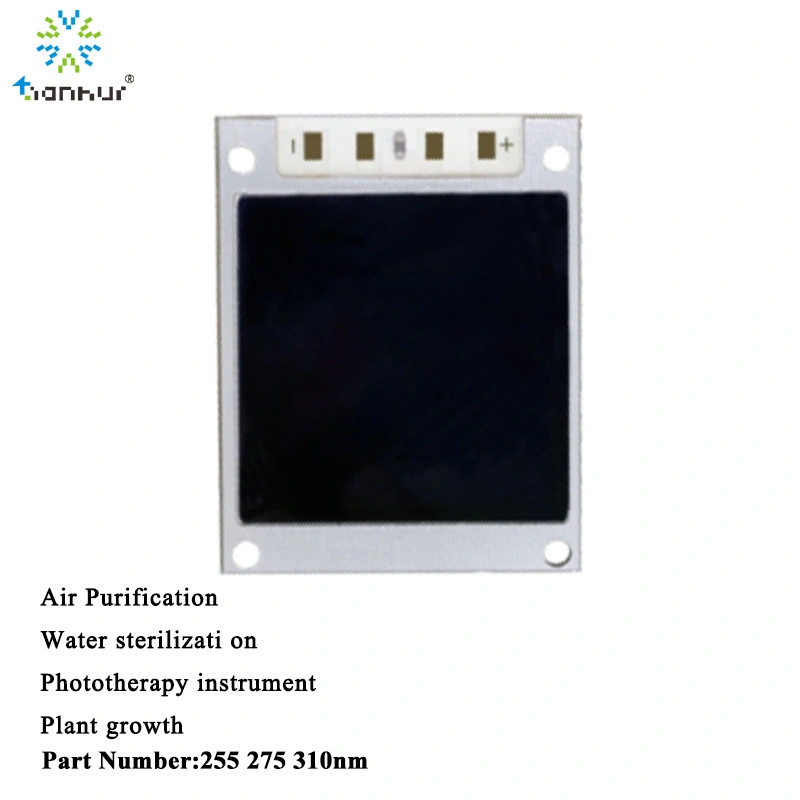

UVC LED COB 15W Series for Air Purification Water sterilization Phototherapy Instrument Plant growth

5.0
UV radiation flux:
240~400mW
Rated voltage:
20~26V
Minimum order quantity:
10
Consumption Power (W):
10~20W
Input Voltage:
20~26V
Wavelength:
255~310nm
Power consumption:
15~20W
Power:
15~20W
Input power:
15~20W
Brand:
Tianhui
MOQ:
10
Model:
TH-UVxCOB15W4H6P-4253
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    PEAK
    WAVELENGTH
    POWER FORWARD
    VOLTAGE
    FORWARD
    CURRENT
    RADIANT
    FLUX
    RADIATION
    ANGLE
    255nm 15~20W 20~26V 600~800mA 240~400mW 120
    275nm 15~20W 20~26V 600~800mA 240~400mW 120
    310nm 15~20W 20~26V 600~800mA 240~400mW 120
    APPLICATIONS Air Purification/Sterilization/Water Sterilization/Chemical Detection/Food Preservation…
    Guangsheng air disinfection series
    Guangsheng series details
    (2)

    Warning Instructions For Use

    1. To avoid energy decay, keep the front glass clean.

    2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

    3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

    4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

    recommended that the glue of the outlet hole of the module directly contact the drinking water.

    5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

    6. Human safety

    Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

    If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

    used to protect the body. Attach the following warning labels to products / systems
