Tianhui uv curing systems for printing is made by adopting international advanced technologies. This product has been reviewed and certified to meet the most stringent quality requirements. Empathy, patience and consistency can be seen in Zhuhai Tianhui Electronic Co., Ltd.'s customer service.

Description

Items	Condition	Min.	Typ.	Max.	Unit
Forward Current	-	-	20	-	mA
Forward Voltage	IF=20mA	3.6	-	7	V
Optical Power Output	IF=20mA	0.5	1.1	2.5	mW
Wavelength	IF=20mA	250	255	260	nm
		260	265	270	nm
		270	275	280	nm
		280	285	290	nm
		290	295	300	nm
		300	305	310	nm
		300	310	315	nm
		335	340	350	nm
Viewing Angle	IF=20mA	-	7.5	-	Deg

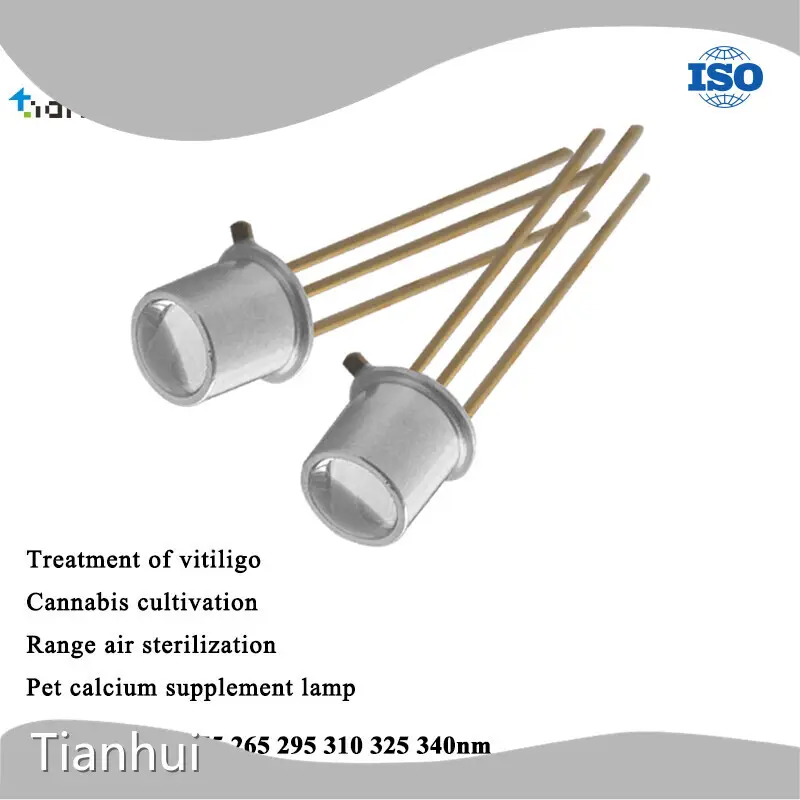

Tianhui TO46 340nm UVA LED is a light source used for medical testing, mainly for blood analysis and other aspects. This LED light source has a wavelength of 340 nanometers and belongs to the ultraviolet A-band. The A-band ultraviolet light has a longer wavelength and lower energy, making it suitable for certain medical applications.

In the field of medicine, blood analysis is one of the most important detection methods. By analyzing blood samples, important information about the patient's health status can be obtained, such as red blood cell count, white blood cell count, hemoglobin content, etc. As a light source, Tianhui TO46 340nm UVA LED can provide sufficient ultraviolet A light to stimulate specific components or markers in the blood, thereby assisting medical workers in blood analysis.

There are some advantages to using Tianhui TO46 340nm UVA LED for blood analysis. Firstly, ultraviolet A light can penetrate blood samples and interact with certain components within them. Secondly, the Tianhui TO46 340nm UVA LED has a shorter response time and longer lifespan, providing a stable and reliable light source. In addition, the design of the TO46 packaging makes it more compact and easy to integrate into medical devices.

In summary, Tianhui TO46 340nm UVA LED, as a medical testing light source, can be used in fields such as blood analysis. It provides stable ultraviolet A light for stimulating and detecting specific components in the blood, providing important blood analysis data for medical workers.

Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.

Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.

CUD73F4A (270-280nm)

TH-UV275A-WOB-1A(270-280nm)

TH-UV275-WOB-16(270-280nm)

CUD7GF1A(270-280nm)

TH-UV275T25WS600-6868(270-280nm)

TH-UV275T15WS400-6868(270-280nm)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Feature

• Tianhui's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
• Our company has a group of aspirant technical talents and business elites. Apart from that, we cooperate with experienced experts at home and abroad to develop new products. All that guarantees the high quality of each product.
• Tianhui is dedicated to constantly providing efficient services based on customer demand.
• Tianhui strives to open up the domestic and international market. UV LED Module, UV LED System, UV LED Diode are sold well in China and exported to some countries and regions in Europe, America, Africa and Southeast Asia.
Tianhui has our own factory and UV LED Module, UV LED System, UV LED Diode are of high quality and favorable price. If you have any interest, please contact us for details.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
