Uv Led Water Disinfection Tianhui Brand Company IP60

Company Advantages

· When Tianhui uv led water disinfection is designed, many necessary factors are taken into considerations, such as safety, stability, strength, contaminants and harmful substances, and ergonomics.

· This product is hypoallergenic. All allergens that caused by dyes, chemicals or other additives can be eliminated in the process of the production.

· Zhuhai Tianhui Electronic Co., Ltd. has won the favor of customers with first-class products and first-class service.

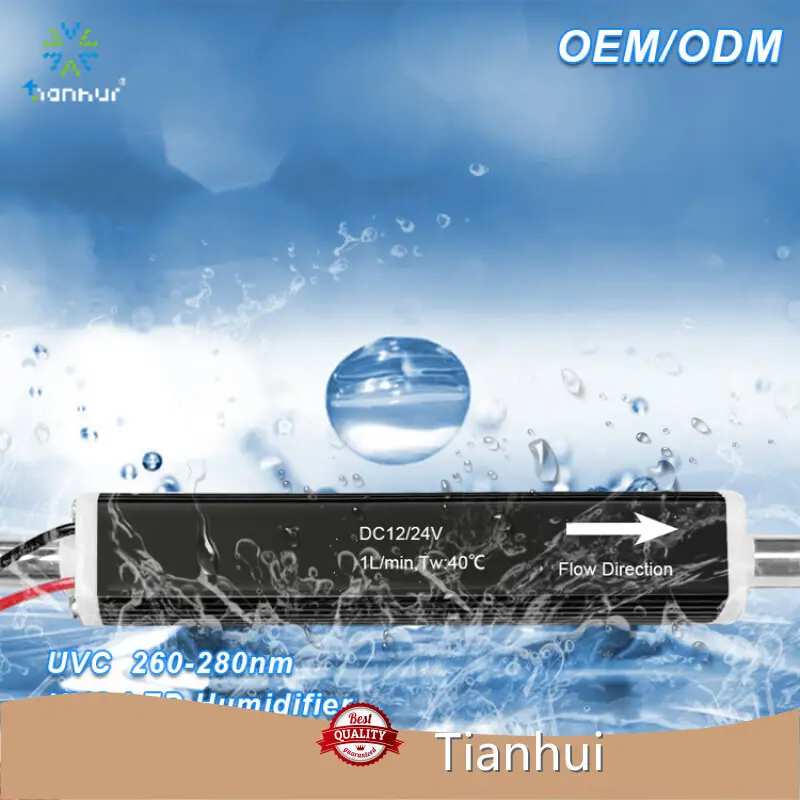

TH-UVC-CM01M is a UVC LED over-current water killing device

Bacterial module. Small size, environmental protection and safety of selected materials drinking water and food contact requirements.

The wavelength range of the UVC LED used is 260- 280nm, with excellent and efficient sterilization effect.

Inside UVC high reflectivity cavity can effectively improve the utilization of UV light. So as to significantly improve the bactericidal effec

Application

这是一段描述

Drinking machine	Ice machine	Air humidifier	Air purifier
Aromatherapy machine	Pet water dispenser	Dishwasher

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-CM01M	-
Opening Hole size	-	-
Rated voltage	DC 12V or DC 24V	-
UVC radiation flux	35~45mW	1LPM ( Can fix 2LPM )
UVC Wavelength	260-280nm	-
Input current	125mA@12V	63mA@24V
Input power	1.5W	-
Waterproof grade	IP60	-
Wire rod	UL1007 24AWG	Customizable
Terminals	XH2.54, White	Terminals can be customized
Lamp bead life	10,000 Hours	According LED
Dielectric Strength	DC500 V,1min@10mA, Input current
Size	Φ16.3x80.4 (mm)
Net weight	28g±3g
Applicable water temperature	4~40℃	-
Storage temperature	-40℃-85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· As a professional uv led water disinfection manufacturer, Tianhui has been ranking top in the industry.

· Produced by the most advanced technology, Tianhui is proud to have this high quality uv led water disinfection. It is clear that uv led water disinfection is made by the most advanced staff utilizing high-end technology. Being sold well in the industry, uv led water disinfection is famous for its high quality.

· The management policy for Zhuhai Tianhui Electronic Co., Ltd. is pursuing excellence. Get price!

Product Details

Tianhui's uv led water disinfection is processed based on the latest technology. It has excellent performances in the following details.

Application of the Product

The uv led water disinfection developed by Tianhui is widely used in various fields.

With a focus on customers' potential needs, Tianhui provides customers with one-stop solutions.

Product Comparison

Compared with similar products, our uv led water disinfection has the following major characteristics.

Enterprise Advantages

Tianhui has a team of professional and technical personnel with high production efficiency.

Tianhui is equipped with professional sales and customer service staff. They are able to provide services such as consulting, customization and product selection.

Our company has always followed the corporate style of 'stick to yourself, dare to challenge, never surrender', and taken 'standardization, integrity, innovation' as our business philosophy. Based on that, we strive to meet the needs of consumers and demonstrate self-advantage, so as to provide better products and more comprehensive service for the community.

Established in Tianhui has gradually become the leading model enterprise in the industry after years of practice and fumble.

Tianhui has vigorously explored the domestic and overseas markets in various ways. UV LED Module, UV LED System, UV LED Diode are currently sold well in some countries and regions in Europe, America, and Australia.
