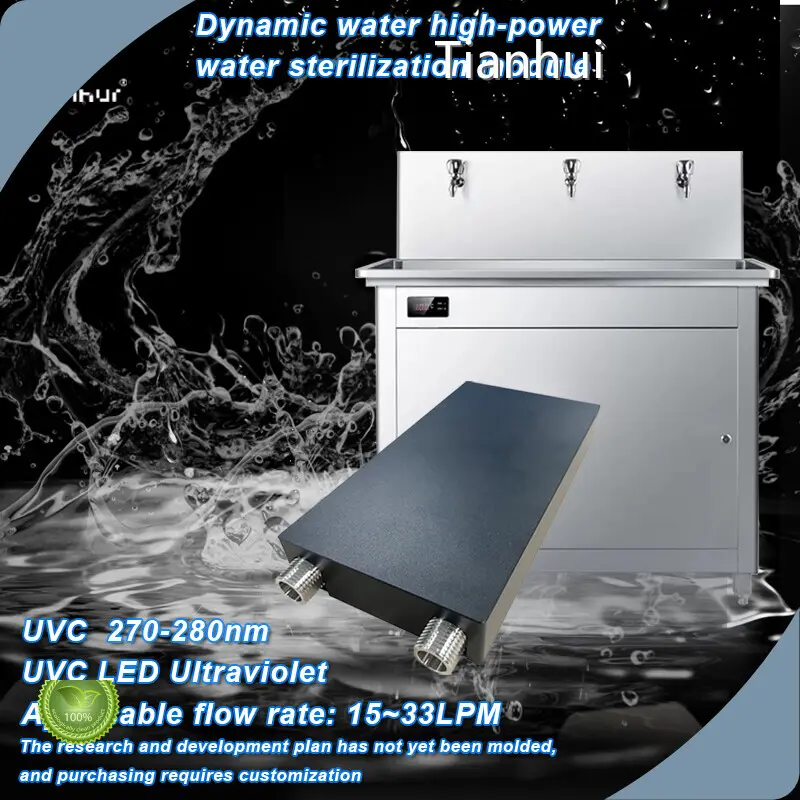

Uv Led 270 Nm 270~280 Uv Led 270 Nm IP60 Company

Product details of the uv led 270 nm

Quick Detail

Tianhui uv led 270 nm is fabricated using quality raw materials and advanced production technology. Modified by several times, uv led 270 nm can be applied into many different places. The product is warmly welcomed and widely applied by our global customers thanks to its remarkable advantages and high economic benefits.

Product Information

Compared with the same kind of products in the industry, uv led 270 nm has the following highlights due to the better technical capability.

Technical parameters(Preliminary)

1.Rated Voltage：DC24V

2.lnput current：1.2~1.5A

3.Power consumption：28~36W

4.UVC radiant flux：700~1000mW(TBD)

5.UVC peak wavelength：275nm

6. Sterilization rate：>99.9%@25LPM(E.coli)

7.Protective class：P60

8.UVC LED lifespan：L70>2000h(TBD)

9. Applicable flow rate：15~33LPM

   (Sterilization rate declines when flow rate exceeds 25LPM)

10.Applicable water temperature：4~40C

11. Applicable water pressure： <0.4MPa

12. Pressure drop(Pme_-mm)： 25KPa@25LPM，44KPa@33LPM

     (Simulatin result)

13. Wading materials：SUS304， Quartz glass，Food-grade silicone rubber

Company Information

Located in zhu hai, Zhuhai Tianhui Electronic Co., Ltd. is a enterprise specializing in the production of UV LED Module, UV LED System, UV LED Diode. Tianhui always adheres to the strategic orientation of 'people-oriented, efficient, pragmatic and sustain-developed'. We focus on sincerity-based business and technological innovation during development. To gain mutual benefit, we strengthen the partnerships at home and abroad. Tianhui attaches great importance to the cultivation and introduction of scientific and technological talents. Now we have a team of outstanding talents with experts from various disciplines. With professional engineers and technicians in our company, Tianhui is able to provide one-stop and comprehensive solutions for customers.
The products produced are qualified products of high quality. If you are interested in our products, please contact us!
