· Zhuhai Tianhui Electronic Co., Ltd. can provide customization service for ultraviolet sterilization systems.

· The product combines versatility with reliable performance.

· Zhuhai Tianhui Electronic Co., Ltd. has formed a network of exclusive partnerships with many ultraviolet sterilization systems brands.

feature

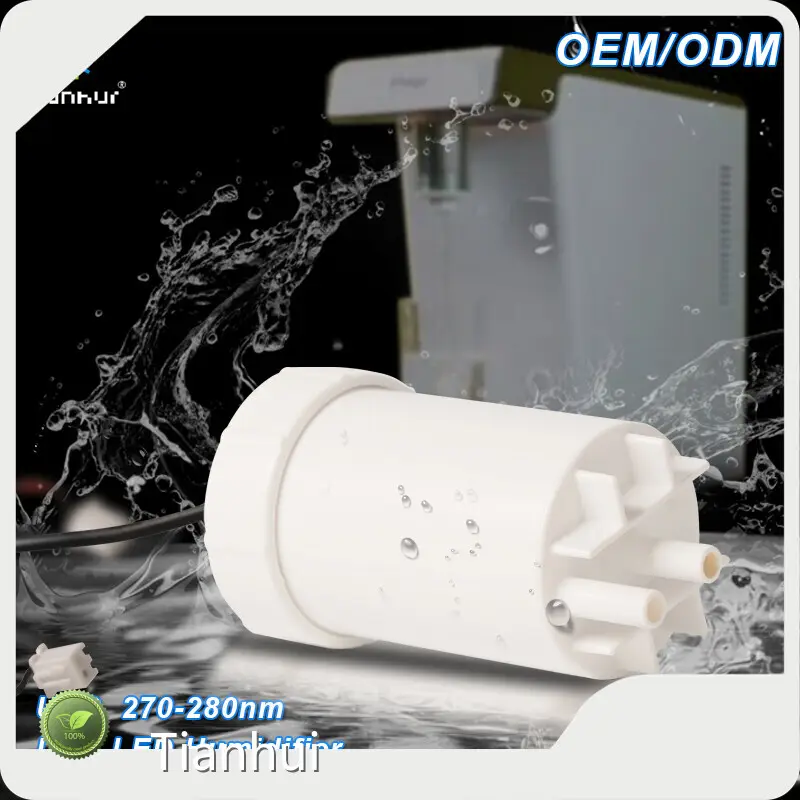

1. Tianhui TH-UVC-PA01-B UVC Led module is specially designed for water disinfection and sterilization. The package emits 265nm UV LED, 275nm UV LED, 280nm UV LED, which can penetrate cells and damage nucleic acids, subsequently causing them to lose microbial activity or die.

2. UV-C LED modules emit UV-C radiation designed to reduce 99.9% of microorganisms and prevent their growth in water1). This reduces unpleasant odors caused by bacteria buildup in or on the equipment, resulting in less maintenance.

3.UVC led module features and safety

UVC lamp: high-quality 265nm , 275nm, 280nm uv led

Radiated power: typically 3.5 mW

Installation: Very easy to install using tape

Operation: Can be operated directly via USB power supply

Safety: LED status indicator lights up during operation

Compliance: RoHS compliant

Brand	Tianhui
Module	TH-UVC-PA01-B
UVC Wavelength	265nm uv led ~280nm uv led
Input Current	300mA
Waterproof Grade of Shell	IP65
Rated Voltage	DC24V
UVC Radiation Flux	50~240mW
Applicable Water Temperature	0℃~40℃
Size	*φ4990mm**
Applicable Water Pressure	0.5~1Mpa

265nm 275nm 280nm UVC Led Module Application

Drinking machine/lce machine/Kitchen water purifier

Air humidifier/Pet water dispenser/Tea bar machine

Price Description: please consult with our sales staff for specific prices.

UVC Led water sterilizer Product Information
Item	Specification	Remark
Module	TH-UVC-PA01-B	-
Water Pipe interface	1/4”, quick connector	Customizable
Rated Voltage	DC24V	Customizable
UVC Radiation Flux	50~240mW	Matched 1~5LPM
Input Current	300mA	According to LED Selection
Input Power	5~15W	Matched 1~5LPM
Waterproof Grade of Shell	IP65	-
Applicable Water Pressure	0.5~1Mpa	Optional
Wire Rod	200±10mm	Line Length can be Customized
Terminals	XH2.54,White	Terminals can be Customized
Lamp Bead Life	10000~25000 Hours	According to LED Selection
Dielectric Strength	DC500 V, 1min@10mA, Leakage Current
Size	φ49*90mm
Net weight	91±5g
Applicable Water Temperature	0℃~40℃	-
Storage Temperature	-40℃~85℃	-

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. is a highly competitive manufacturer and supplier of ultraviolet sterilization systems.

· Our company has a team of experts. They have expertise in their area of expertise and assist the company in the production of products in accordance with customer instructions.

· To be one of the advanced ultraviolet sterilization systems manufacturer is the hope of Tianhui. Contact us!

Application of the Product

Tianhui's ultraviolet sterilization systems can play an important role in various fields.

Before developing a solution, we will fully understand the market situation and customer's needs. In this way, we can provide effective solutions for our customers.
