Product details of the 340 nm uv

Quick Detail

Being widely recognized by more customers, it turns out to be effective that Tianhui needs to also pay attention to the design of 340 nm uv. Our response team conducts the quality control system to ensure the high quality product. Zhuhai Tianhui Electronic Co., Ltd. has established strategic cooperation relationships with many famous companies.

Product Information

340 nm uv's outstanding advantages are as follows.

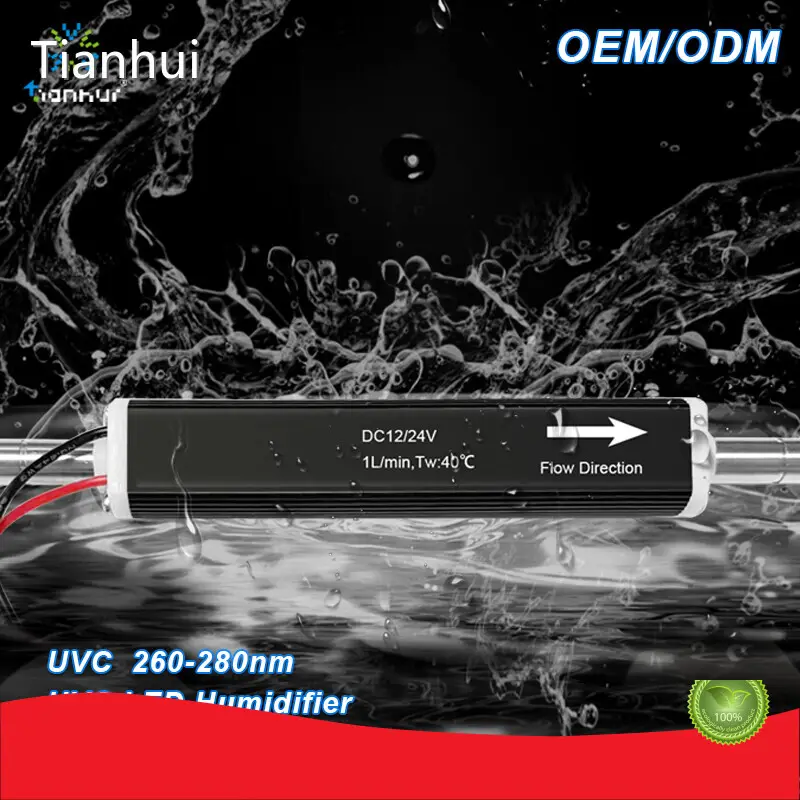

TH-UVC-CM01M is a UVC LED over-current water killing device

Bacterial module. Small size, environmental protection and safety of selected materials drinking water and food contact requirements.

The wavelength range of the UVC LED used is 260- 280nm, with excellent and efficient sterilization effect.

Inside UVC high reflectivity cavity can effectively improve the utilization of UV light. So as to significantly improve the bactericidal effec

Application

这是一段描述

Drinking machine	Ice machine	Air humidifier	Air purifier
Aromatherapy machine	Pet water dispenser	Dishwasher

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-CM01M	-
Opening Hole size	-	-
Rated voltage	DC 12V or DC 24V	-
UVC radiation flux	35~45mW	1LPM ( Can fix 2LPM )
UVC Wavelength	260-280nm	-
Input current	125mA@12V	63mA@24V
Input power	1.5W	-
Waterproof grade	IP60	-
Wire rod	UL1007 24AWG	Customizable
Terminals	XH2.54, White	Terminals can be customized
Lamp bead life	10,000 Hours	According LED
Dielectric Strength	DC500 V,1min@10mA, Input current
Size	Φ16.3x80.4 (mm)
Net weight	28g±3g
Applicable water temperature	4~40℃	-
Storage temperature	-40℃-85℃	-

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

With years of rich experience in the manufacture of 340 nm uv, Zhuhai Tianhui Electronic Co., Ltd. has become a competitive manufacturer in the industry. We have a robust technical development team with strong technical competency and system integration capabilities. Such a team enables us to provide customers with diverse customized product solutions that cater to different cost and precision requirements. We are finding ways to reduce the company's impact on the environment and embed sustainability throughout our businesses. We achieve these from the efficiency of our buildings to our progress in managing energy, water, and production waste.
The products produced are qualified products of high quality. If you are interested in our products, please contact us!
