Tianhui Brand 390 Nm Led Tianhui 3~4V 0.21~0.36W Factory

Rated voltage:

3~4V

Consumption Power (W):

0.21~0.36W

Color:

Brand:

Tianhui

Model:

TH-UV(x)T1WPS40-3535F Series

Inquiry

Product details of the 390 nm led

Quick Detail

The well-designed Tianhui 390 nm led makes it more special than other similar products. The product is tested to be of the highest quality again and again. Zhuhai Tianhui Electronic Co., Ltd.'s major competitive advantage is that it develops world-leading 390 nm led technology in-house.

Product Description

Compared with similar products, our 390 nm led has the following major characteristics.

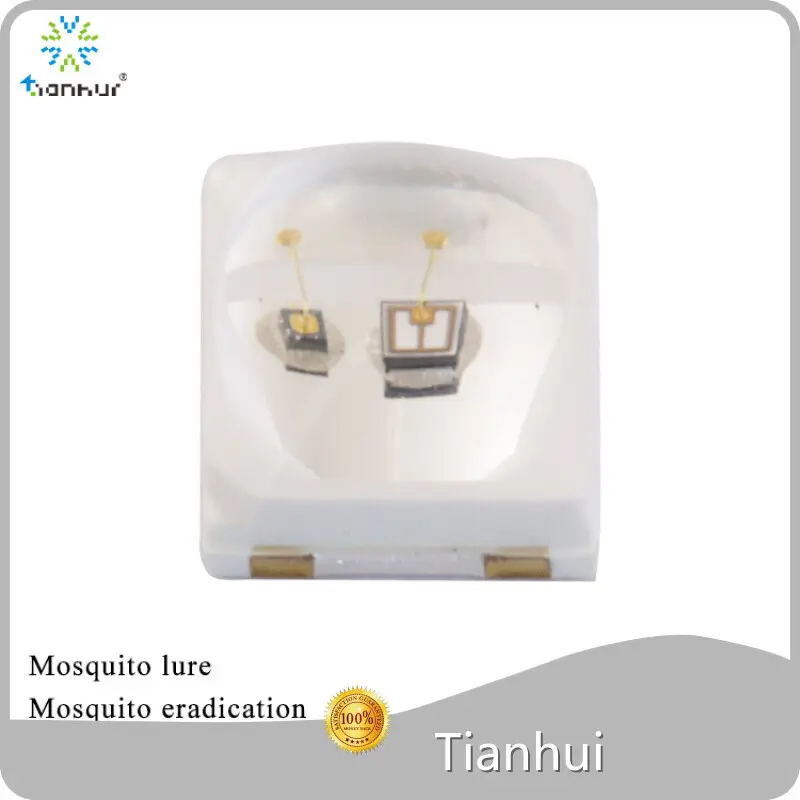

UV LED 365~375nm UVA LED Beads Series for Mosquito Lure Mosquito Eradication

Items	Condition	Min.	Typ.	Max.	Unit
Forward Current	-	-	60	-	mA
Forward Voltage	IF=60mA	3	3.5	4	V
Radiant Flux	IF=60mA	40	-	60	mW
Peak Wavelength	IF=60mA	365	-	375	nm
Viewing Angle	IF=60mA	-	120	-	deg.
Spectrum Half Width	IF=60mA	-	12	-	nm
Themal Resistance	IF=60mA	-	8.4	-	℃/W

Items	Condition	Min.	Typ.	Max.	Unit
Forward Current	-	-	100	-	mA
Forward Voltage	IF=100mA	3	3.6	4	V
Radiant Flux	IF=100mA	80	-	100	mW
Peak Wavelength	IF=100mA	365	-	375	nm
Viewing Angle	IF=100mA	-	120	-	deg.
Spectrum Half Width	IF=100mA	-	12	-	nm
Themal Resistance	IF=100mA	-	8.4	-	℃/W

UVA ultraviolet rays conform to the phototaxis response curve of insects and can be used to lure insects

The mosquito trap lamp emits blue light. The mosquito trap lamp uses a blue purple tube, and the light emitted by the tube belongs to the UVA in ultraviolet light, with the wavelength of the light being the key, ranging from 355 to 370 nanometers. Suggest choosing a stronger luminosity

apply

Do not place them in the same place for a long time. It is best to place the mosquito trap lamp above the knee height. Usually, a small stool can be used, but it should not exceed 180 centimeters, as this is the range where mosquitoes often fly, and a secluded place is the best choice. It is best to change the placement location frequently, and hidden corners and under the table are the best places.

Due to mosquitoes' preference for acidic substances, adding a little water and vinegar to the tray of the mosquito trap can increase its effectiveness. Using skincare products such as sheep oil and Chevrolet can also increase mosquito attraction.

Regularly clean mosquito traps and keep them clean, and mosquitoes usually do not approach their companions' bodies when they see them.

When using mosquito traps, other indoor light sources should be turned off. Because mosquitoes are disturbed, they cannot feel the light source of the mosquito trap lamp, greatly reducing the mosquito catching effect. Similarly, using mosquito traps during the day may result in poorer results.

Multiple use options

Bedroom

Kitchen

Living Room

Garden/Deck

CUD73F4A (270-280nm)

TH-UV275A-WOB-1A(270-280nm)

TH-UV275-WOB-16(270-280nm)

CUD7GF1A(270-280nm)

TH-UV275T25WS600-6868(270-280nm)

TH-UV275T15WS400-6868(270-280nm)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
