Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service.

High End 255 Nm Led Tianhui Manufacture 1

High End 255 Nm Led Tianhui Manufacture 2

High End 255 Nm Led Tianhui Manufacture 3

High End 255 Nm Led Tianhui Manufacture 4

High End 255 Nm Led Tianhui Manufacture

UV radiation flux:

600~800mW

Consumption Power (W):

16.5~21W

Lead_Time:

15 Days

Brand:

Tianhui

Model:

THUV275T15WS400-6868

Inquiry

Company Advantages

· Better environmentally friendly materials are used for 255 nm led.

· The enrichment of its functionality makes it more popular with customers.

· Zhuhai Tianhui Electronic Co., Ltd. strives to build a world-class integrated 255 nm led enterprise with global competitiveness.

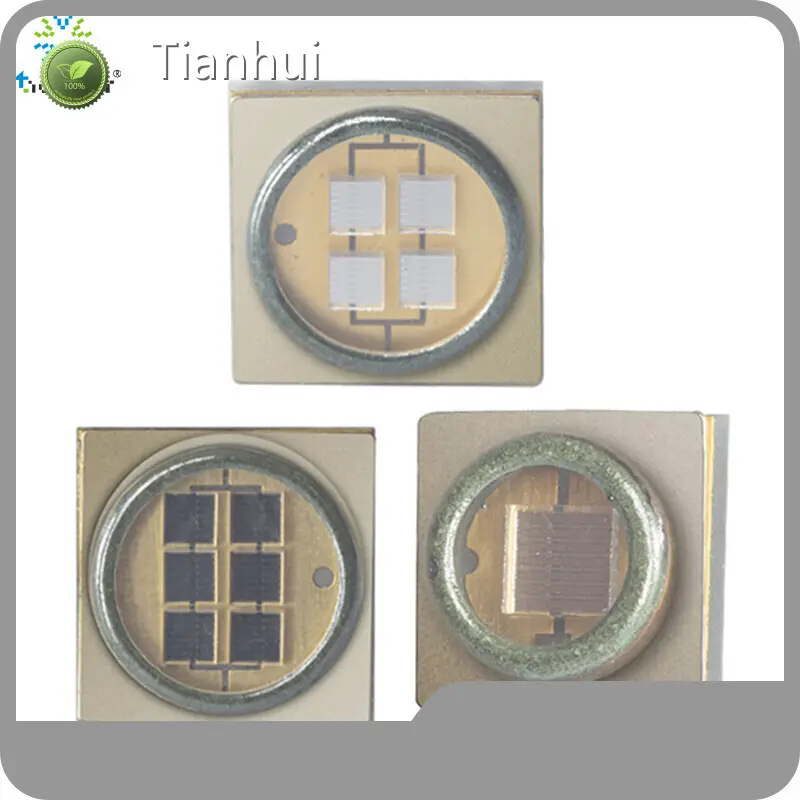

270nm 280nm UVC LED Diode SMD 3535-6868

The sterilization characteristics of UVC LED Diode:

In the field of sterilization and disinfection, UVC LED Diode utilizes high-energy ultraviolet radiation to irradiate microorganisms and destroy the nucleic acid structure, thereby achieving the goal of microbial inactivation, and almost all microorganisms including bacteria, viruses, fungi, and algae can be inactivated.UVC LED Diode has the advantages of high sterilization efficiency, long service life, no chemical pollutants, simple operation, etc., and can be widely used in air, water and object surface disinfection and sterilization. With the global spread of novel coronavirus (COVID-19), 270nm UV Led, 280nm UV Led and UVC LED disinfection is considered as an effective method to eliminate novel coronavirus, which has been used in public places, transportation, personal protection and other fields, providing scientific and technological support to curb the spread of COVID-19.

The role of 270nm, 280nm led

The sterilization band is concentrated between 265nm and 280nm, and the lamp bead has high luminous efficiency. It only takes 3 minutes to complete the strong disinfection of items; Due to the environmentally friendly and non-toxic characteristics of UVC LED, this product can disinfect items with high safety requirements such as food, clothing, and baby pacifiers. 270nm UV LED and 280nm UV LED have strong sterilizing power and are suitable for environments requiring high-intensity sterilization such as hospitals and laboratories, as well as daily life and working environments such as homes and offices.

Experience advanced water disinfection with our 270nm led, 280nm led, ledcoupled with VC LED Diode. Our UVC technology ensures effective and reliable water purification, promoting a healthier environment with precision.

Products such as sterilization lamp, disinfection bag, air disinfection and sterilization, water purification and sterilization device equipped with self-developed UVC LED have been launched, which are characterized by high luminous efficiency, low power consumption, high reliability, and a service life of more than 10000 hours. A variety of sterilization methods covering surface sterilization, air sterilization, water sterilization, etc. can be applied in family scenes.

UV LED Air Purification
UV LED Mosquito Trap
UVC LED Sterilization Bottle
UV LED Water Sterilization

The primary advantage of 270nm UV LED, 280nm UV LED are its germicidal properties. UV LED technology is known for its energy efficiency compared to traditional UV lamps, contributing to lower operational costs. UV LEDs are compact and can be easily integrated into various devices and systems, providing flexibility in design and application.UV LEDs are mercury-free, contributing to a more environmentally friendly option compared to traditional UV lamps that may contain mercury.

When considering the use of UV LED Diode, it's essential to consult with UV LED manufacturers or suppliers to understand specific product specifications and ensure proper integration into intended applications.

PEAKWAVELENGTH	POWER	FORWARDVOLTAGE	FORWARDCURRENT	RADIANTFLUX	RADIATIONANGLE
270~280nm Led	16~21W	11~14V	1.5A	600~800mW	120
APPLICATIONS	UV LED Disinfection, UV LED Sterilization, Phototherapy, Fluorescent Spectroscopy, Sensor Light, Bio-Analysis / Detection, Counterfeit Detectors, etc

PEAKWAVELENGTH	POWER	FORWARDVOLTAGE	FORWARDCURRENT	RADIANTFLUX	RADIATIONANGLE
270~280nm UV LED	11~16.8W	11~14V	1~1.2A	400~600mW	120
APPLICATIONS	Disinfection, Sterilization, Phototherapy, Fluorescent Spectroscopy, Sensor Light, Bio-Analysis / Detection, Counterfeit Detectors, etc

PEAKWAVELENGTH	POWER	FORWARDVOLTAGE	FORWARDCURRENT	RADIANTFLUX	RADIATIONANGLE
270~280nm UV LED	2.5~4.9W	5~7V	0.5~0.7A	80~120mW	120
APPLICATIONS	Disinfection, Sterilization, Phototherapy, Fluorescent Spectroscopy, Sensor Light, Bio-Analysis / Detection, Counterfeit Detectors, etc

Notes :

1. Peak Wavelength Measurement tolerance : ±3nm

2. Radiant Flux Measurement tolerance : ± 10%

3. Φe is the Total Radiant Flux as measured with an integrated sphere.

4. Forward Voltage Measurement tolerance : ±3%

5. RθJ-b is the thermal resistance between chip junction to PCB board bottom.

The PCB is made of aluminium and the size of PCB is 6.8mm by 6.8mm

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. is regarded as the premier manufacturer and supplier of 255 nm led. We are widely accepted in this manufacturing industry.

· Our R&D team is engaged in developing, integrating, piloting, and evaluating innovative products such as 255 nm led. Their strong technological know-how helps come up with breakthrough solutions for clients.

· Zhuhai Tianhui Electronic Co., Ltd. has always been committed to technology innovation and quality improvement for 255 nm led. Check it!

Application of the Product

The 255 nm led produced by our company is suitable for various occasions in industry.

We understand the actual situation of the market, and then combine the needs of customers. In this way, we develop the most suitable solutions for customers and effectively meet their needs.

Product Comparison

Compared with similar products, our 255 nm led's outstanding advantages are as follows.

Enterprise Advantages

Tianhui has strong R&D, design and sales teams to provide a powerful guarantee in product development, structural design, and business management.

Our company has established a perfect pre-sales, sales, after-sales service system, so that each customer can make a worry-free selection and purchase.

Our company will continue to adhere to the business concept of 'customer service, customer satisfaction', and follow the spirit of 'strive for better, pursue excellence'. With the strong technical strength and serious attitude, we will create a first-class brand and build a good corporate image, striving to be a leading company in the industry.

After years of hard work and innovation, Tianhui has developed into an enterprise with leading production technology in the industry.

Our sale market covers the whole country. Our products are also exported to Southeast Asia, Africa and other countries and regions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
