Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service.

DurableTianhui Uv Led 405 Nm - TH-UV340T1WPS-3535H-60 1

DurableTianhui Uv Led 405 Nm - TH-UV340T1WPS-3535H-60 2

DurableTianhui Uv Led 405 Nm - TH-UV340T1WPS-3535H-60 3

DurableTianhui Uv Led 405 Nm - TH-UV340T1WPS-3535H-60 4

DurableTianhui Uv Led 405 Nm - TH-UV340T1WPS-3535H-60 5

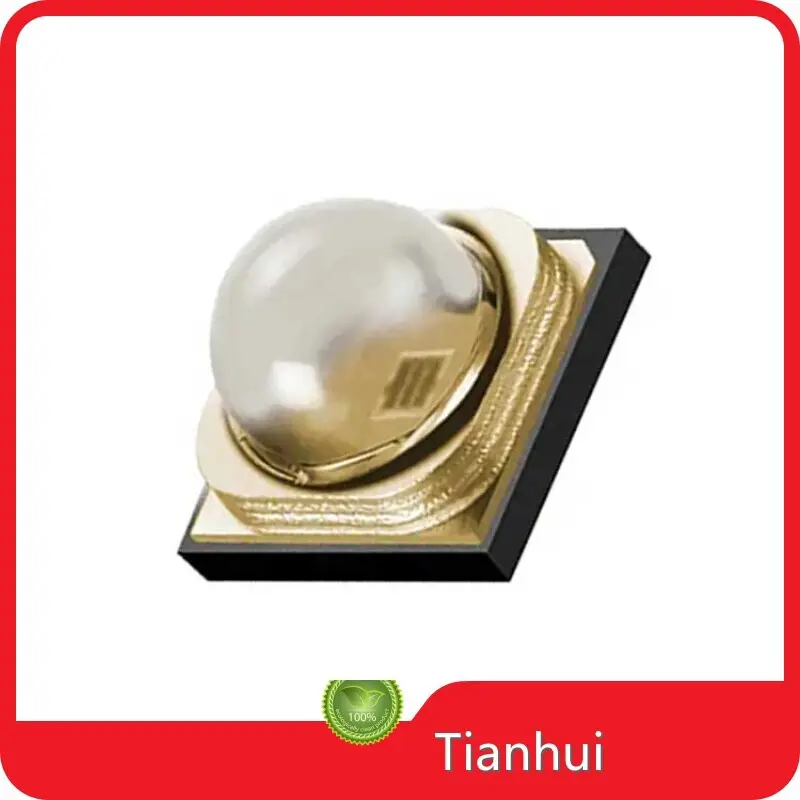

DurableTianhui Uv Led 405 Nm - TH-UV340T1WPS-3535H-60

UV Wavelength:

340~350nm

Rated voltage:

3.4-5.0V

Led Power:

20-60mW

Product name:

TH-UV340T1WPS-3535H-60

Inquiry

UV-LED 340 nm to 350 nm

Spectroscopy for Medical & Scientific applicationPeak wavelength

Product characteristics

The emission peak is 335-350nm and matched with the sensor

Good linearity and spot of light output

The operating temperature range is -20 ° C to 60 ° C

Efficient output optical power and good stability

Fast response speed

High reliability TO46 packaging with good heat dissipation

Compliant with ROHS standards

UVA ultraviolet lamp refers to a general term for long wavelength ultraviolet lamps with a wavelength of 320-400nm. In addition to fixed ultraviolet lamps, UVA ultraviolet lamps also include 340nm ultraviolet medical testing, water testing, air testing, and blood testing. UVA ultraviolet lamps, as long wavelength ultraviolet lamps, have the characteristic of strong penetration. It is widely used in industries such as industry, Criminal investigation, minerals, aquaculture and medical treatment. Today we will discuss the application of ultraviolet 340nm light sources.

77c6a7efce1b9d16dcd7015ba3b6db888c546463

Seoul Viosys SVC Ultraviolet UVA UV-LED 340 nm to 350 nm For Blood Analysis Phototherapy Spectroscopy

for Medical & Blood analysis and testing & Scientific application & Water detection & Air detection......

Parameter	Min.	Typ.	Max.	Unit
Peak Wavelength	340	-	350	nm
Radiant Flux	20	-	60	mW
Forward Voltage	3.4	4.3	5.0	V
Spectrum Half Width	-	12	-	nm
View Angle	-	60	-	deg.

Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.

Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.

CUD73F4A (270-280nm)

TH-UV275A-WOB-1A(270-280nm)

TH-UV275-WOB-16(270-280nm)

CUD7GF1A(270-280nm)

TH-UV275T25WS600-6868(270-280nm)

TH-UV275T15WS400-6868(270-280nm)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

· Tianhui uv led 405 nm has some advantages that other products are incomparable with, such as lasting performance and relatively long service life.

· The product reaches the advanced quality level of the industry.

· The technology Zhuhai Tianhui Electronic Co., Ltd. mastered has provided a strong guarantee for the good quality of its uv led 405 nm.

Company Features

· Zhuhai Tianhui Electronic Co., Ltd. is a manufacturer of uv led 405 nm with rich experience and enthusiasm in China. We have accumulated many years of industry knowledge.

· We have introduced foreign high-end production devices. Combining with advanced techniques, we have realized the effective guarantee of the product producing process.

· We work hard to achieve our sustainability practices. We’ve put environmental criteria into our product innovation process so that every new product we launch contributes to sustainability.

Application of the Product

The uv led 405 nm produced by Tianhui has a wide range of applications.

Tianhui insists on providing customers with reasonable solutions according to their actual needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
