Cost-effective Vehicle Mounted Uvc Led Air Purifier Supply | Tianhui

UV radiation flux:

＞15mW(Single Module) / ＞60mW(4 Modules)

Rated voltage:

DC 12V±5％V

Input Voltage:

DC 9V~15V

Wavelength:

270-280nm

Input power:

0.96W(Single Module) / 3.84W(4 Modules)

Inquiry

more products

UV LED Water Sterilization

UV LED Air Sterilization

UV LED Medical Use

UV LED Detection

UV LED Grow Light

UV LED Space Disinfection

UV LED Daily Use

Send your inquiry

Product details of the vehicle mounted uvc led air purifier

Product Description

The production process of Tianhui vehicle mounted uvc led air purifier is streamlined, minimizing the waste. The product combines versatility with excellent performance. Having introduced many advanced technology, Tianhui has enough capability to produce high quality vehicle mounted uvc led air purifier.

Cost-effective Vehicle Mounted Uvc Led Air Purifier Supply | Tianhui 7

Description

Cost-effective Vehicle Mounted Uvc Led Air Purifier Supply | Tianhui 8

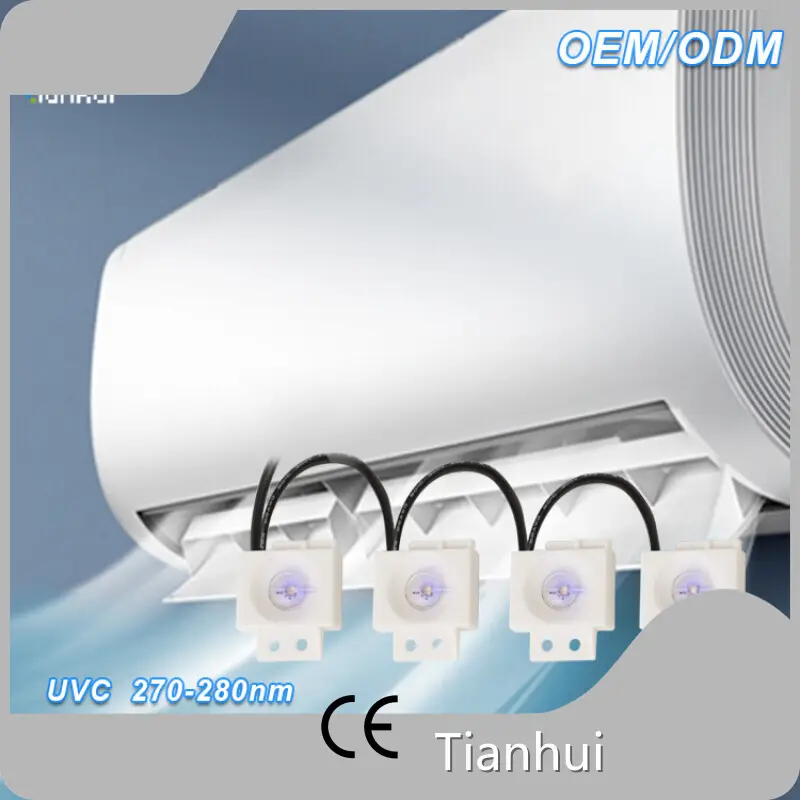

TH-UV-05(UVC) has two mounting holes on the side for screw mounting fixation, and multiple of this module can be connected in parallel, which is suitable for air inhibition of static UVC LED inhibition module.

The modules are compounded with IP68 waterproof requirements.

Use of UVC LED wavelength range of 270 ~ 280nm, with excellent and efficient sterilization disinfection effect, the surface is UV high-transmission quartz lens to improve the effective utilization of UVC, can significantly enhance the sterilization effect.

All materials are compounded with RoHS and Reach environmental requirements.

Application

Air conditioning

Air purifier

Parameters

Item	Specifications	Remark
Model	TH-UV-05	-
Opening Hole size	-	-
Rated voltage	DC 12V±5％V	Customizable
UVC radiation flux	＞15mW (single module)	＞60mW (4 modules)
UVC Wavelength	270~280nm	-
Input current	80mA±10 (single module)	320mA±40 (4 modules)
Input power	0.96W	3.84W
Waterproof grade	-	-
Lamp bead life	-	-
Dielectric Strength
Size
Net weight
Applicable water temperature	-25℃~40℃	-
Storage temperature	-40℃~85℃	-

Cost-effective Vehicle Mounted Uvc Led Air Purifier Supply | Tianhui 10

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
