Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service.

400nm Uv Led TH-UV(x)T1WPS40-3535F Series Tianhui 3~4V Custom Tianhui 1

400nm Uv Led TH-UV(x)T1WPS40-3535F Series Tianhui 3~4V Custom Tianhui 2

400nm Uv Led TH-UV(x)T1WPS40-3535F Series Tianhui 3~4V Custom Tianhui 3

400nm Uv Led TH-UV(x)T1WPS40-3535F Series Tianhui 3~4V Custom Tianhui 4

400nm Uv Led TH-UV(x)T1WPS40-3535F Series Tianhui 3~4V Custom Tianhui

Rated voltage:

3~4V

Minimum order quantity:

Color:

Brand:

Tianhui

Model:

TH-UV(x)T1WPS40-3535F Series

Inquiry

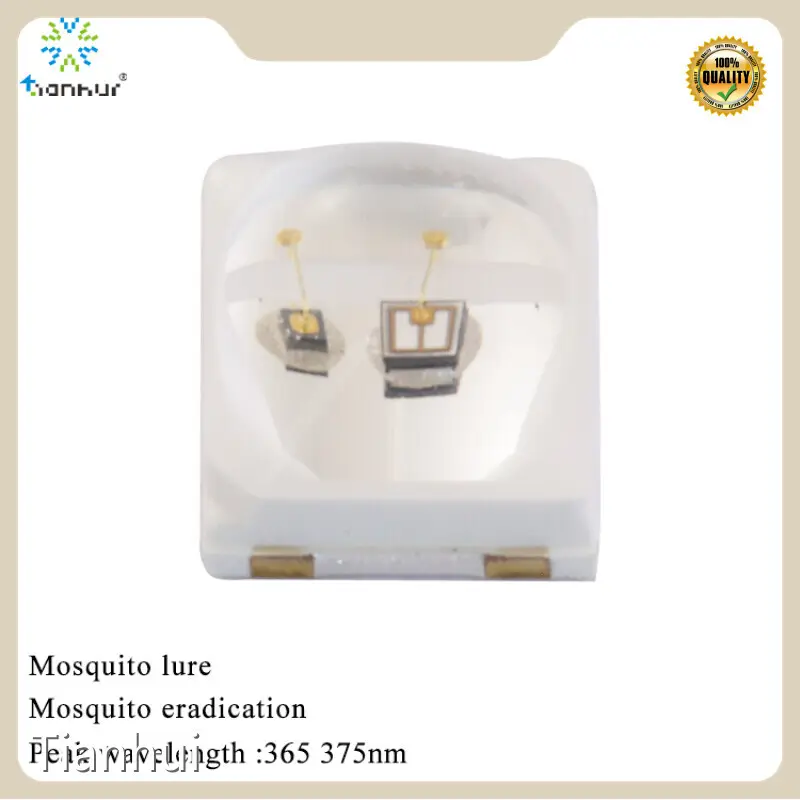

UV LED 365~375nm UVA LED Beads Series for Mosquito Lure Mosquito Eradication

Items	Condition	Min.	Typ.	Max.	Unit
Forward Current	-	-	60	-	mA
Forward Voltage	IF=60mA	3	3.5	4	V
Radiant Flux	IF=60mA	40	-	60	mW
Peak Wavelength	IF=60mA	365	-	375	nm
Viewing Angle	IF=60mA	-	120	-	deg.
Spectrum Half Width	IF=60mA	-	12	-	nm
Themal Resistance	IF=60mA	-	8.4	-	℃/W

Items	Condition	Min.	Typ.	Max.	Unit
Forward Current	-	-	100	-	mA
Forward Voltage	IF=100mA	3	3.6	4	V
Radiant Flux	IF=100mA	80	-	100	mW
Peak Wavelength	IF=100mA	365	-	375	nm
Viewing Angle	IF=100mA	-	120	-	deg.
Spectrum Half Width	IF=100mA	-	12	-	nm
Themal Resistance	IF=100mA	-	8.4	-	℃/W

UVA ultraviolet rays conform to the phototaxis response curve of insects and can be used to lure insects

The mosquito trap lamp emits blue light. The mosquito trap lamp uses a blue purple tube, and the light emitted by the tube belongs to the UVA in ultraviolet light, with the wavelength of the light being the key, ranging from 355 to 370 nanometers. Suggest choosing a stronger luminosity

apply

Do not place them in the same place for a long time. It is best to place the mosquito trap lamp above the knee height. Usually, a small stool can be used, but it should not exceed 180 centimeters, as this is the range where mosquitoes often fly, and a secluded place is the best choice. It is best to change the placement location frequently, and hidden corners and under the table are the best places.

Due to mosquitoes' preference for acidic substances, adding a little water and vinegar to the tray of the mosquito trap can increase its effectiveness. Using skincare products such as sheep oil and Chevrolet can also increase mosquito attraction.

Regularly clean mosquito traps and keep them clean, and mosquitoes usually do not approach their companions' bodies when they see them.

When using mosquito traps, other indoor light sources should be turned off. Because mosquitoes are disturbed, they cannot feel the light source of the mosquito trap lamp, greatly reducing the mosquito catching effect. Similarly, using mosquito traps during the day may result in poorer results.

Multiple use options

Bedroom

Kitchen

Living Room

Garden/Deck

CUD73F4A (270-280nm)

TH-UV275A-WOB-1A(270-280nm)

TH-UV275-WOB-16(270-280nm)

CUD7GF1A(270-280nm)

TH-UV275T25WS600-6868(270-280nm)

TH-UV275T15WS400-6868(270-280nm)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Advantages

· The production of Tianhui 400nm uv led is based on high packaging and printing standards, combined with traditional methods and modern advanced packaging & printing technology.

· This product is eco-friendly and harmless. The painting or pigment used in it are guaranteed to meet the environmental protection standards of European and American.

· With these favorable features, it will enjoy wide development prospects.

Company Features

· As a forefront enterprise in the 400nm uv led in industry, Zhuhai Tianhui Electronic Co., Ltd. has steadily developed over the years.

· A considerable manufacturing capacity has formed in Zhuhai Tianhui Electronic Co., Ltd..

· We are fully confident in the quality of our 400nm uv led. Check now!

Application of the Product

Tianhui's 400nm uv led is widely used in the industry and is widely recognized by customers.

Tianhui always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
