255nm Led Series for Water Disinfection Tianhui 270~315nm

Product details of the 255nm led

Product Introduction

Tianhui 255nm led is rich in modern design styles that are designed by our experts. The performance of this product is able to achieve the highest levels of satisfaction of our valuable clients. This product is highly demanded among our clients for these features.

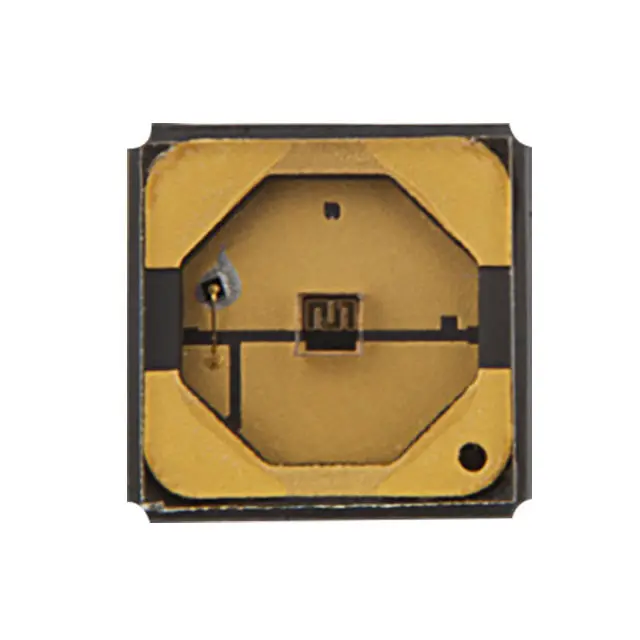

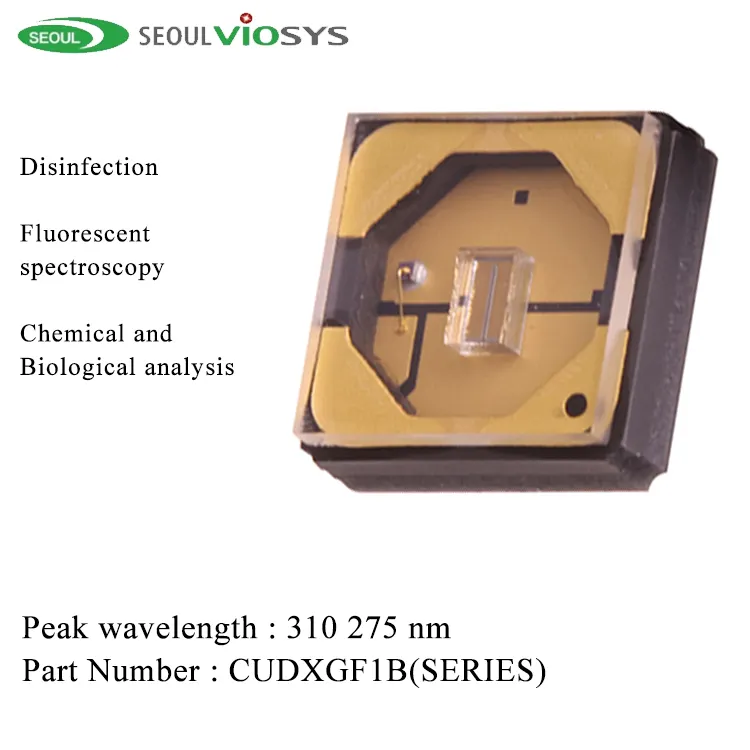

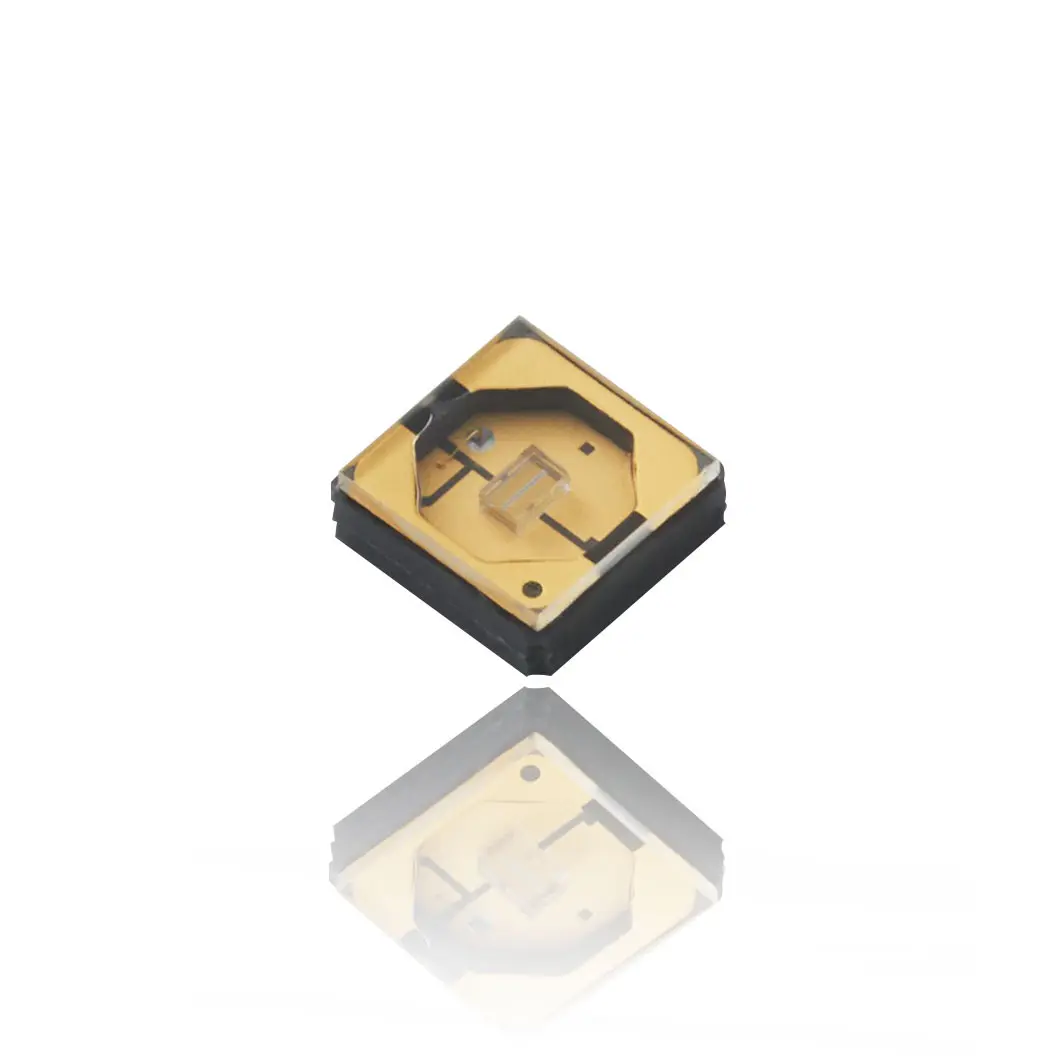

The CUD(x)GF1B series are deep UV lamps. LEDs with peak emission wavelengths from 270nm to 278nm.

The LED is encapsulated in a ceramic package including an optically clear window.

It combines advanced SMD design with low thermal resistance.

The CUD(x)GF1B series is designed for air and water. Sterilization and tools, including chemical and biological analysis in this spectral range.

Application

这是一段描述

Disinfection

Fluorescent Spectroscopy

Chemical and Biological Analysis

Parameters

这是一段描述

Item	Specifications
Model	CUD(x)GF1B
Rated voltage	5~7V
UV radiation flux	6/16mW
UV Wavelength	270~310nm
Input current	100mA
Input power	0.5~0.7W
Storage temperature	-40℃-100℃

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
