Product details of the 250nm led
Quick Detail
The production of Tianhui 250nm led follows an extremely strict process during the design phase. Quality-focused: the product is a result of pursuing high quality. It is strictly inspected under the QC team who has the full right to take charge of the quality of the product. 250nm led developed and produced by Tianhui is widely applied to many industries and fields. It can fully meet the diversified needs of customers. Tianhui has enough capability to produce bulk production of 250nm led in a high efficient way.
Product Information
Compared with other products in the same category, 250nm led produced by Tianhui has the following advantages.

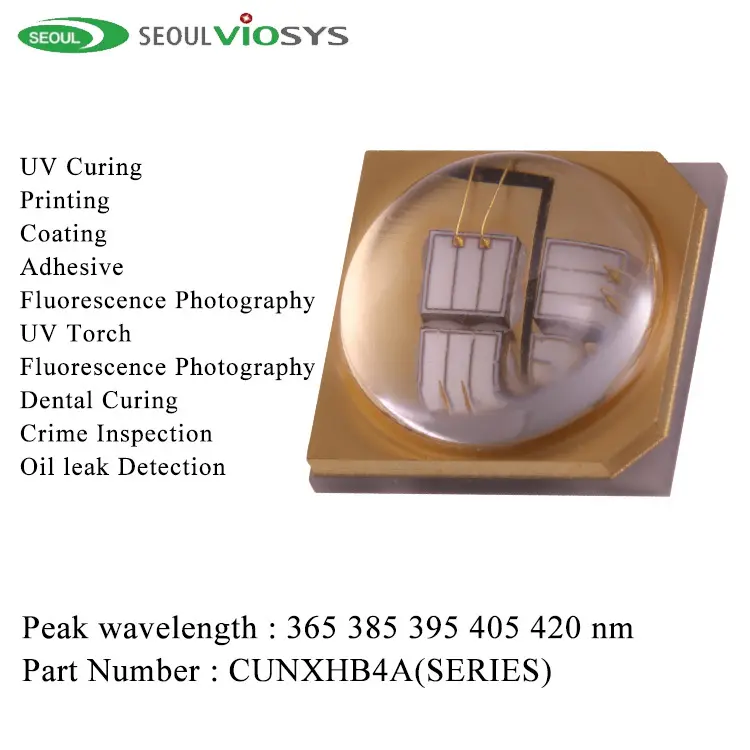

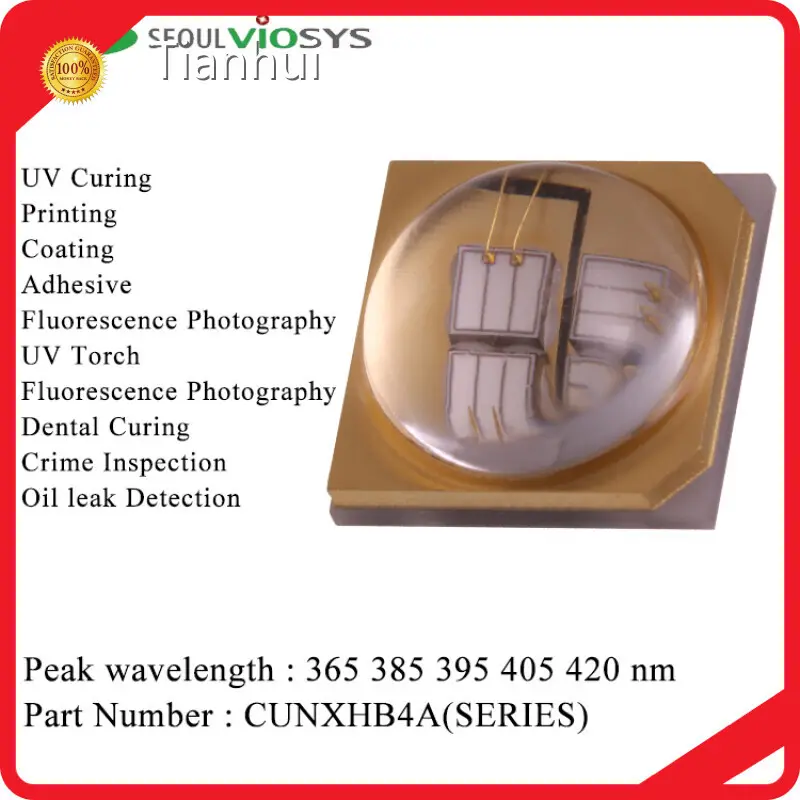

Seoul Viosys SVC Series 365nm /375nm3/85nm/395nm/405nm/410/420nm Four Chip 15W High Power SMD 6868 UV A LED Curing and detection light source
UV fluorescence detection involves basic standards and general methods, fur, leather, comprehensive basic disciplines, crime identification techniques, and plant quarantine.
Pest control, animal quarantine, veterinary and epidemic prevention, livestock, poultry, basic standards and general methods, aquatic products, fishery integration, livestock feed and additives, food hygiene.
Medical laboratory equipment, sugar production, health quarantine, basic standards and general methods, beekeeping, silkworm rearing, environmental health, animal rearing, engine population, basic standards and general methods, public medical equipment, Optical instrument
The jewelry appraisal spectrometer, also known as the jewelry appraisal instrument or gemstone appraisal instrument, is an important instrument and equipment for detecting the ultraviolet visible near-infrared reflectance and transmittance of samples such as gemstones, pearls, and diamonds. By using a jewelry identification spectrometer (jewelry identification instrument, gemstone identification instrument), the characteristic properties of jewelry can be discovered, and then the authenticity or degree of authenticity of jewelry can be judged based on these characteristic properties.
As a new curing scheme, its advantage is short curing time, which can significantly improve production efficiency. Compared to traditional oven curing, it also has environmental characteristics. Traditional oven curing produces a large amount of formaldehyde, and the toxic gases emitted can be harmful to human health. The UV curing machine, on the other hand, does not produce any toxic substances and is an ideal adhesive curing solution. However, direct exposure to ultraviolet radiation can harm human health, so protective measures should be taken in production or daily applications to avoid the harm caused by direct exposure to the human body.
Items | Min. | Typ. | Max. | Unit |
Forward Current | 2000 | mA | ||
Forward Voltage | — | 7.5 | 8.5 | V |
Radiant Flux | 4.0 | — | 5.8 | W |
Peak Wavelength | 360 | 365 | 370 | nm |
380 | 385 | 390 | ||
390 | 395 | 405 | ||
410 | 415 | 420 | ||
Viewing Angle | 120 | deg. | ||
Spectrum Half Width | 10 | nm | ||
Thermal Resistance | — | ºC /W |
Items | Min. | Typ. | Max. | Unit |
Forward Current | 200 | 700 | 1000 | mA |
Forward Voltage | 3.5 | — | 3.8 | V |
Radiant Flux | 830 | — | 1100 | mW |
Peak Wavelength | 360 | 365 | 370 | nm |
380 | 385 | 390 | ||
390 | 395 | 405 | ||
410 | 415 | 420 | ||
Viewing Angle | 60 | deg. | ||
Spectrum Half Width | 10 | nm | ||
Thermal Resistance | — | ºC /W |
Items | Min. | Typ. | Max. | Unit |
Forward Current | 100 | 500 | 700 | mA |
Forward Voltage | 3.3 | — | 3.8 | V |
Radiant Flux | 760 | — | 1210 | mW |
Peak Wavelength | 360 | 365 | 370 | nm |
380 | 385 | 390 | ||
390 | 395 | 405 | ||
410 | 415 | 420 | ||
Viewing Angle | 120 | deg. | ||
Spectrum Half Width | 10 | nm | ||
Thermal Resistance | — | ºC /W |
Items | Min. | Typ. | Max. | Unit |
Forward Current | 20 | mA | ||
Forward Voltage | 3 | 3.5 | 4.0 | V |
Radiant Flux | 6 | 15 | 25 | mW |
Peak Wavelength | 360 | 365 | 370 | nm |
370 | 375 | 380 | ||
380 | 385 | 390 | ||
390 | 395 | 400 | ||
400 | 405 | 410 | ||
410 | 415 | 420 | ||
420 | 425 | 430 | ||
Viewing Angle | 7.5 | deg. | ||
Spectrum Half Width | 12 | nm | ||
Thermal Resistance | ºC /W |
Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED packaging and providing UV LED solutions of finished products for various UV LED applications.
Tianhui electric has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Information
Tianhui is one of the hot brands of 250nm led. Zhuhai Tianhui Electronic Co., Ltd. owns a professional team of technicians to keep improving our 250nm led. Zhuhai Tianhui Electronic Co., Ltd. will complete customer service system to provide customers with the best service.
We are responsible for the production of high-quality products, please contact us to order if in need.
